Shock Link Set, Rod End, Rear, TR4A-TR6

SKU: 2613 Categories: ,
Dimensions: 8 × 4 × 1.25 in
Weight: 1.8lbs

(2 customer reviews)

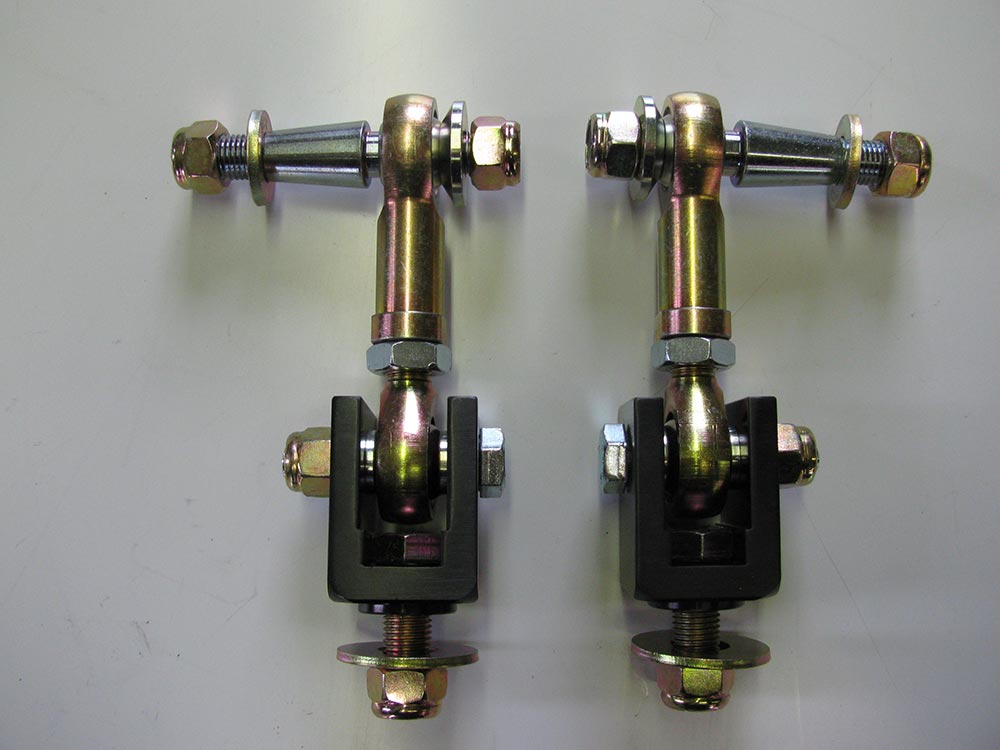

Upgraded shock links with spherical rod ends

Fits Triumph TR4A, TR250 and TR6

Sold as a set for one car


The original type shock links connect to the trailing arm with a rubber bushing above and below the trailing arm. Compression of the soft rubber allows the trailing arm to move up and down a little without moving the shock lever. These spherical rod end links transfer all movement of the trailing arm to the shock lever so the shock can dampen even slight movements of the trailing arm. Replacement original type shock links are prone to failure at the upper end. These upgraded links are a much stronger design that should hold up better than replacement original style links.

Click here for Installation Instructions

Additional information

Weight 1.8 lbs
Dimensions 8 × 4 × 1.25 in

2 reviews for Shock Link Set, Rod End, Rear, TR4A-TR6

  1. Steve Gerow (verified owner)

    Easy installation. Recommend 7/8″ hole saw for enlarging approx 3/4″ hole in swing arm so clevis seats properly per the instructions. Only necessary to drill halfway through. Used Harbor Freight ball joint separator to remove old links from shock arms.

  2. Dave Connitt

    This is a very easy installation. You need to enlarge the lower shock link hole to 7/8” from the top using a step drill. It’s a drop in replacement after that.
