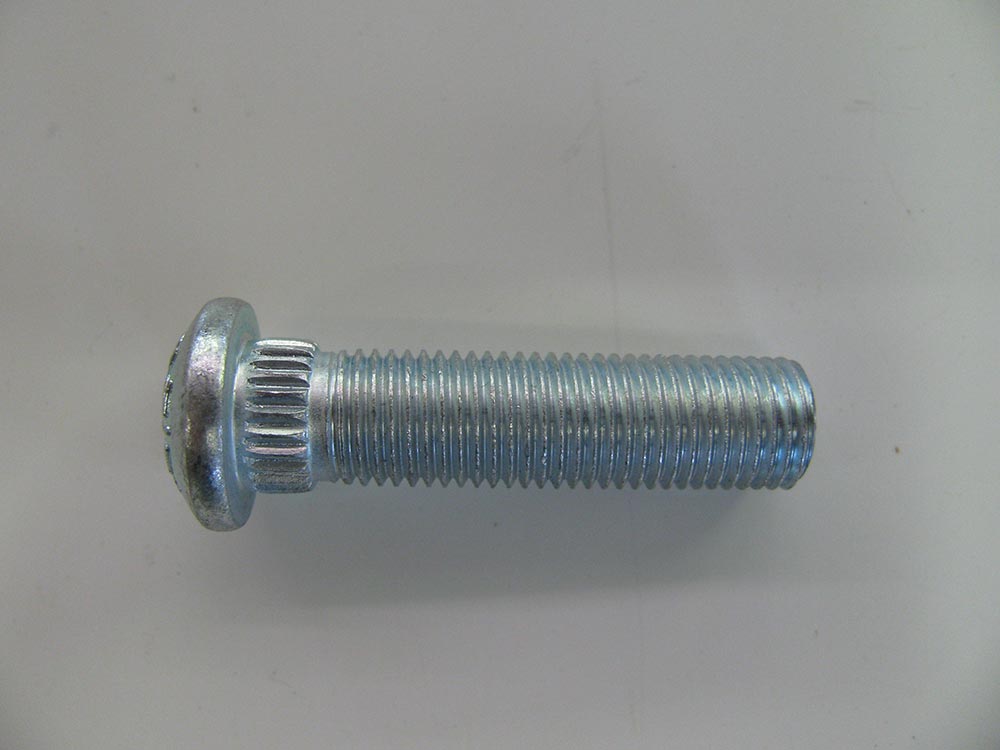

Wheel Stud, Dorman, for Good Parts Rear Hub through 4/9/2023 (choose length)

Dimensions: 1.75 × 0.75 × 0.75 in
Weight: 0.1lbs


Replacement wheel studs for Good Parts Rear Hub Assembly

Fits Good Parts Rear Hub Assembly (does NOT fit stock hub)

Sold individually


These Dorman wheel studs are direct replacement for your Good Parts rear hub assembly (SKU 112) manufactured through 4/9/2023.  Good Parts rear hubs manufactured 4/10/2023 and later are fitted with ARP studs which used a slightly larger hole.  ARP studs can be fitted to earlier Good Parts rear hubs by enlarging the holes from 0.464″ to 0.471″.

These studs are for Good Parts rear hubs only, they do NOT fit original hubs.

Available Stud Lengths:

7/8″ = Wire wheels

1-3/16″ = Factory steel wheels and most aftermarket alloy wheels

1-3/8″ = Alloy wheels with thicker center flange (may require measuring to ensure proper lug nut thread depth)

1-9/16″ or 1-3/4″ = Wheels + wheel spacers

NOTE: These studs are standard 7/16-20 thread.  Stud length is measured from face of hub flange without the brake drum installed.

Additional information

Weight 0.1 lbs
Dimensions 1.75 × 0.75 × 0.75 in
Wheel Stud Length

7/8" factory length for wire wheels, 1-3/16” factory length for steel wheels, 1-3/8", 1-9/16” for steel wheels with 3/8” spacers, 1-3/4"
