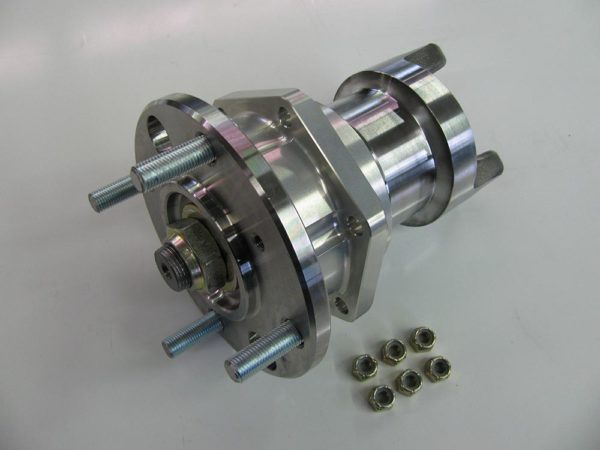

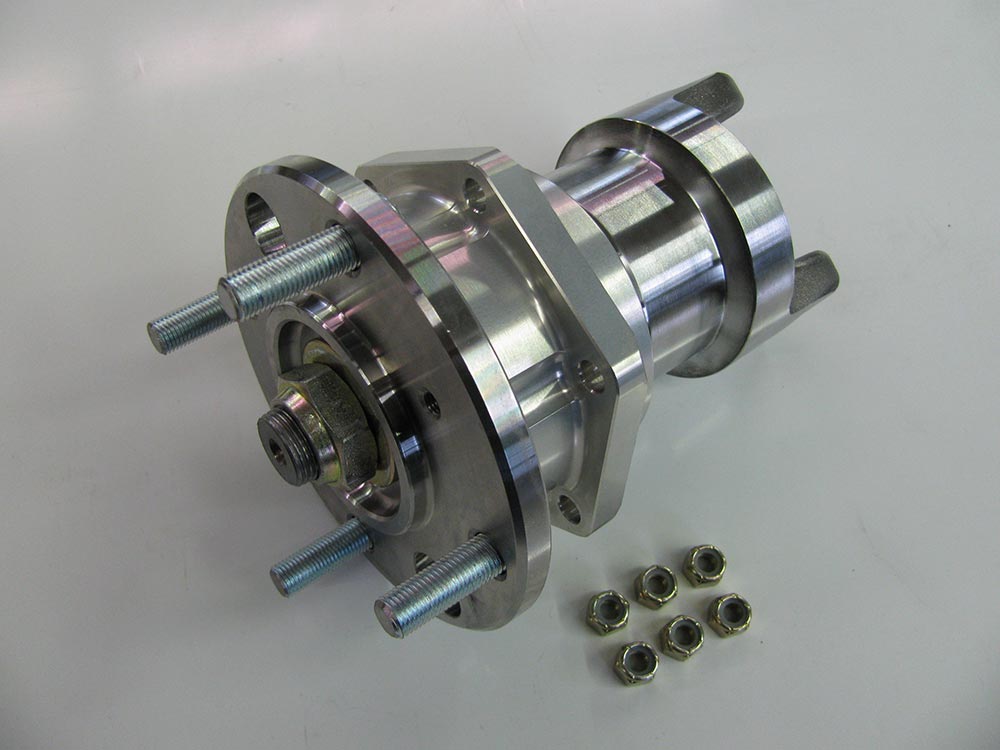

Rear Hub Assembly, Heavy Duty, for Original Axle, Stag

SKU: 112S Categories: ,
Dimensions: 10 × 6 × 6 in
Weight: 12lbs


Upgraded rear axle hub with adapter to attach to original circlip type U-joint axles.  Does not fit staked U-joint used on some Stags.

Fits Triumph Stag with circlip type U-joints.

Sold individually


Don’t spend money rebuilding your original hubs!  Replace them with new, stronger hubs and put an end to worries of a dangerous failure.  Failure of the weak, original rear hub can cause a wheel to suddenly part company with the car with devastating results.

Take a look at the comparison photos of the rotating parts of the original hub vs. the Good Parts hub.  The original hub transmits all the side force through a small, 1.062″ diameter axle shaft that can fatigue and break.  Good Parts hubs use a much stronger design where the side force is transferred directly from the wheel flange to the large bearing where the minimum load bearing diameter is 1.91″.  The inner bearing races are included since they contribute to the effective load bearing diameter when the big nut is torqued.  In the photo showing the parts disassembled, the shinier area of the original tapered spindle marked “A” was still securely stuck in the wheel flange which made it very hard to press apart.  The area marked “B” is darker because the surface has tiny wear marks from rubbing against the inside of the taper in the wheel flange as the spindle was flexing.  Eventually the spindle may break off leaving the wheel free to leave the car.  The shiny area marked “C” shows where the inner bearing was wearing on the spindle allowing a little wheel wobble that could not be eliminated with adjustment of the bearing preload.  The original hub transmits driving force through a 1/4″ square key whereas the Good Parts hub uses a spline.


Uses a modern sealed double tapered roller bearing with factory set pre-load

Reduced weight and hub flex improves handling

Simple bolt-in with no modifications to trailing arm

High tensile strength wheel studs, made in the USA

Same hub as SKU112 but includes 1-1/4″ long wheel studs (measured from face of flange without brake drum).  Heads of wheel studs are countersunk to clear brake adjuster on Triumph Stags.

Click here for installation instructions

This item is custom assembled for each order.  Typical lead time is 3-5 days.

Additional information

Weight 12 lbs
Dimensions 10 × 6 × 6 in
