Axle/Hub Assembly, CV Joint, TVR 2500M with 5-bolt R200 Diff, Pair

SKU: 2695B-2696B Categories: ,
Dimensions: 22 × 13 × 7 in
Weight: 48lbs

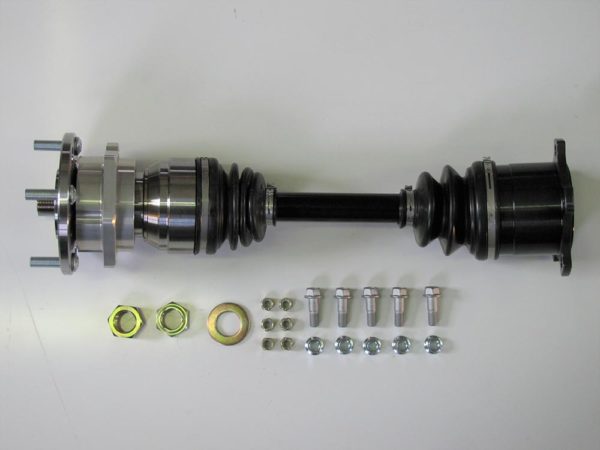

Upgraded CV joint axle and hub for use with a Nissan 5-bolt R200 differential

Fits Triumph TVR 2500M

Sold as a right and left side pair


CV joint axles are an excellent modern upgrade for your TVR 2500M.  CV joints are stronger, more efficient and smoother operating than the original universal joints.  The benefits include less chance of failure, more power delivery to the wheels and better handling.

This pair of axles are the correct lengths to fit in a TVR 2500M with a Nissan 5-bolt R200 differential installed.  The assembly includes two Good Parts upgraded rear hubs (SKU 112) with your choice of wheel stud length.  The kit includes mounting hardware for the axles and hubs.

Click here to go to our R200 Diff Sources and Modifications info page for more information on differentials that match this set of axles.

NOTE:  Some grinding may be required for proper installation.  For more information click here for installation instructions.

Available Wheel Stud Lengths:

7/8″ = Wire wheels

1-3/16″ = Factory steel wheels and most aftermarket alloy wheels

1-3/8″ = Alloy wheels with thicker center flange (may require measuring to ensure proper lug nut thread depth)

1-9/16″ or 1-3/4″ = Wheels + wheel spacers

2-1/4″ (+1/4″ unthreaded nose) = Full length for custom cutting or open ended lug nuts

2″ (+1/4″ unthreaded nose) ½-20 ARP = Larger ½-20 studs for increased strength, made by ARP

Wheel studs are standard 7/16-20 thread unless specified otherwise.  Wheel stud length is measured from the face of the wheel flange without the brake drum installed.

Additional information

Weight 48 lbs
Dimensions 22 × 13 × 7 in
Wheel Stud Length

7/8" factory length for wire wheels, 1-3/16” factory length for steel wheels, 1-3/8", 1-9/16” for steel wheels with 3/8” spacers, 1-3/4", 2-1/4″ threaded length (+1/4″ unthreaded nose), 2" threaded length (+1/4" unthreaded nose) ½-20 ARP + $140
